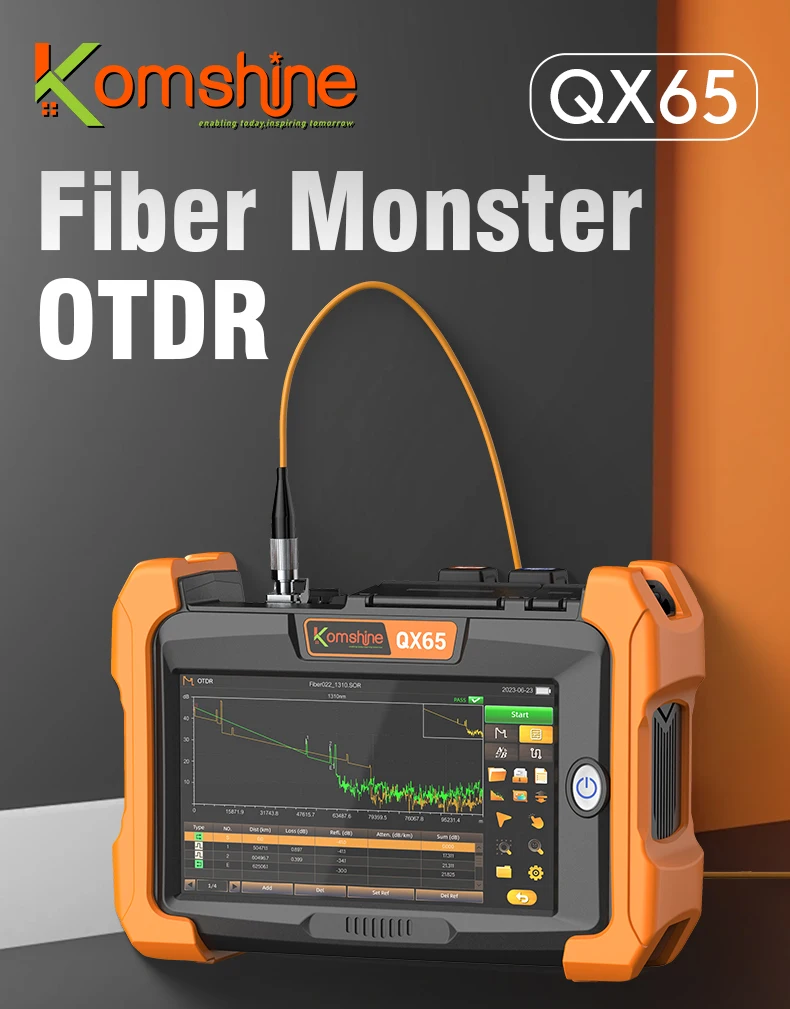

The QX65 OTDR offers superior performance thanks to a completely new algorithm, a large capacity battery and a 7 inch user-friendly screen. Ensure measurement qualify and improve work efficiency, benefits include:

Full range selection:

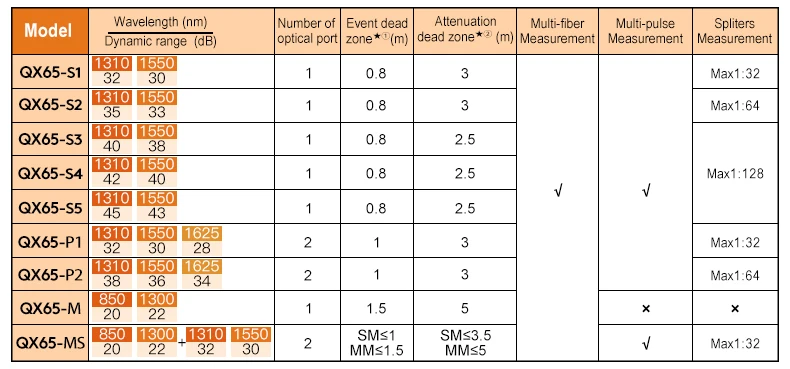

•Wide dynamic range 30~45dB (refer to ordering models)

•Up to 10 OTDR models for selection

•Five optional modules to be customized

Operability:

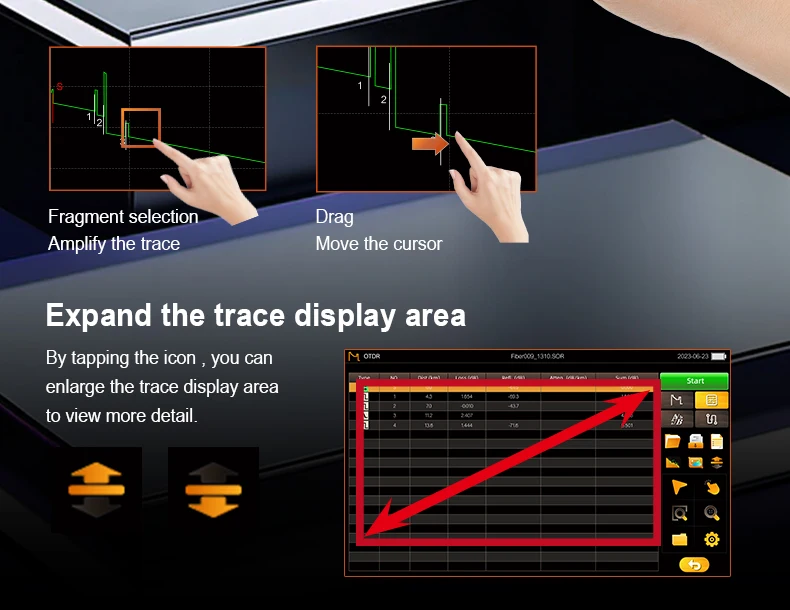

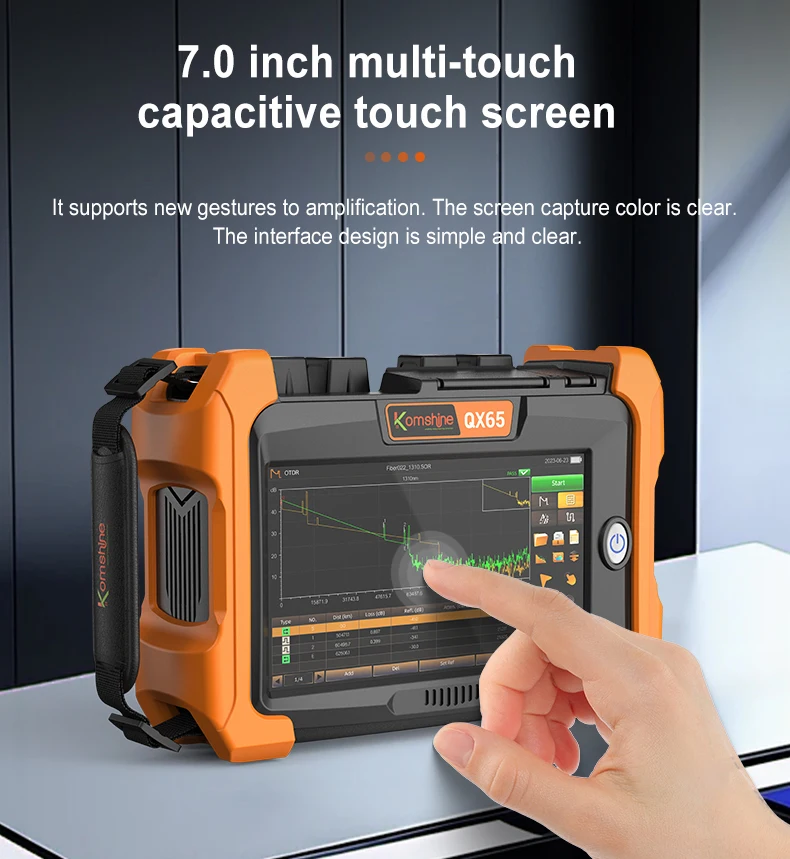

•7-inch color LCD touch screen

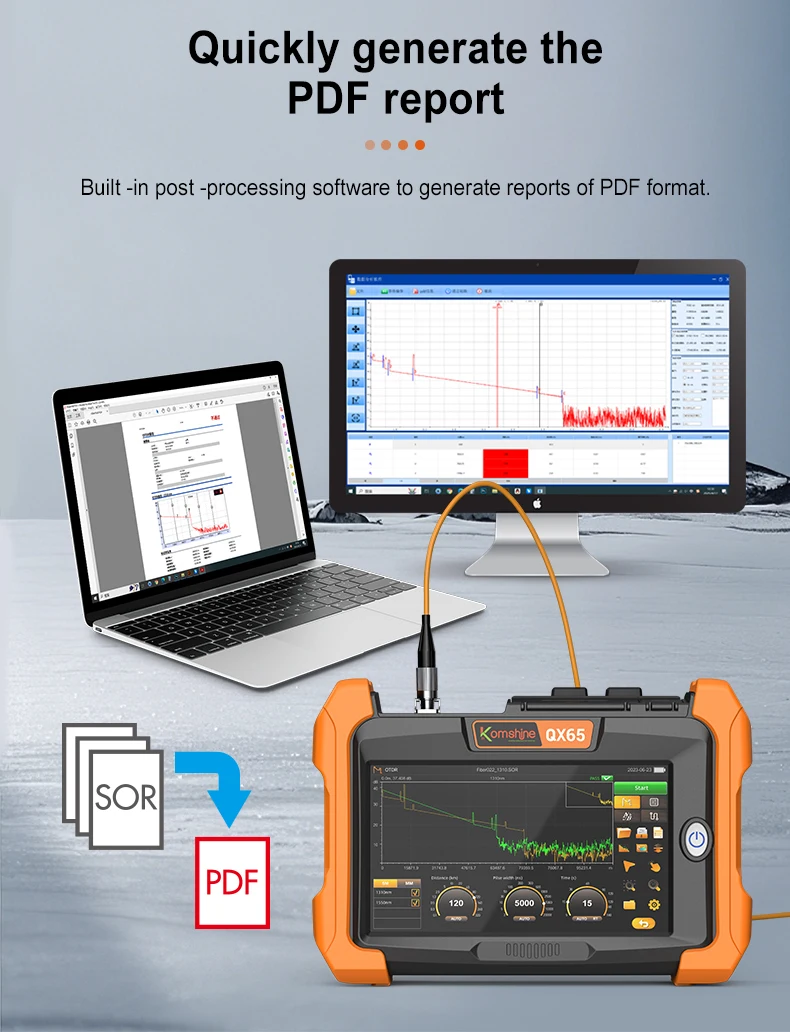

•Generate PDF reports quickly

•F/P analytical judgment function

•Smart map to analyze links graphically

Advanced Trace Analysis:

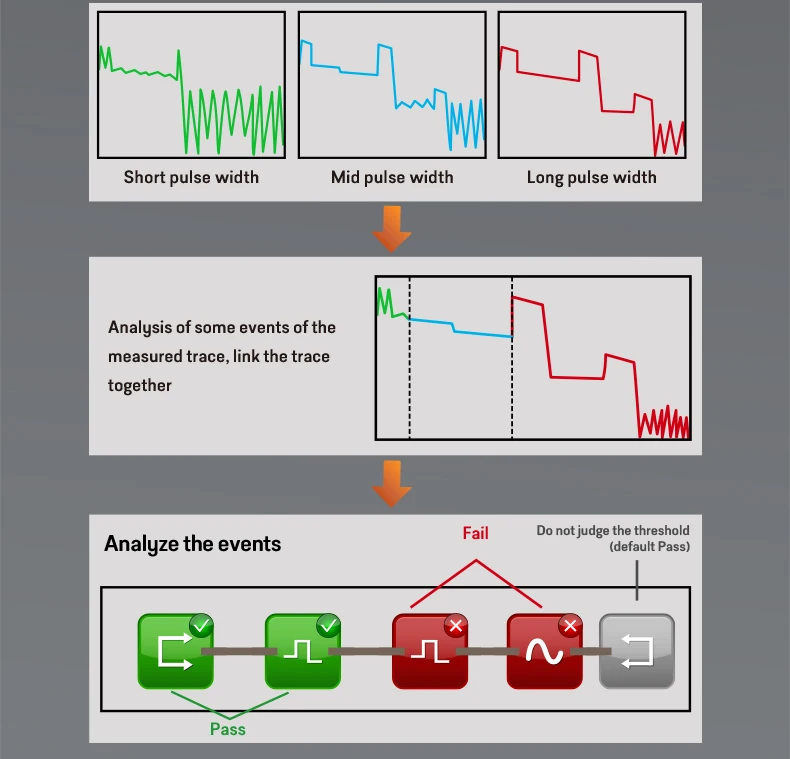

•4-points test

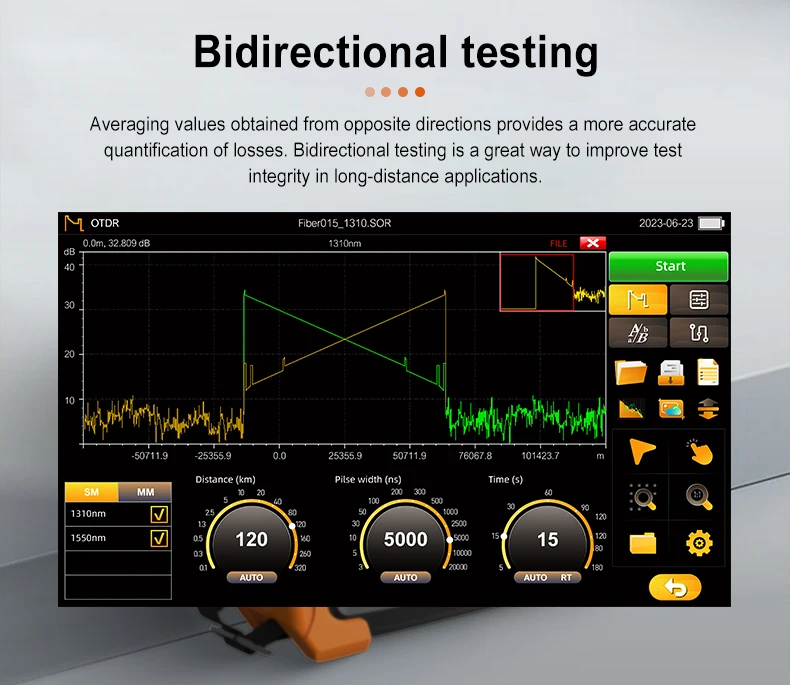

•Bidirectional testing

•Multi-trace analysis

Strong reliability:

•Up to 12h battery life

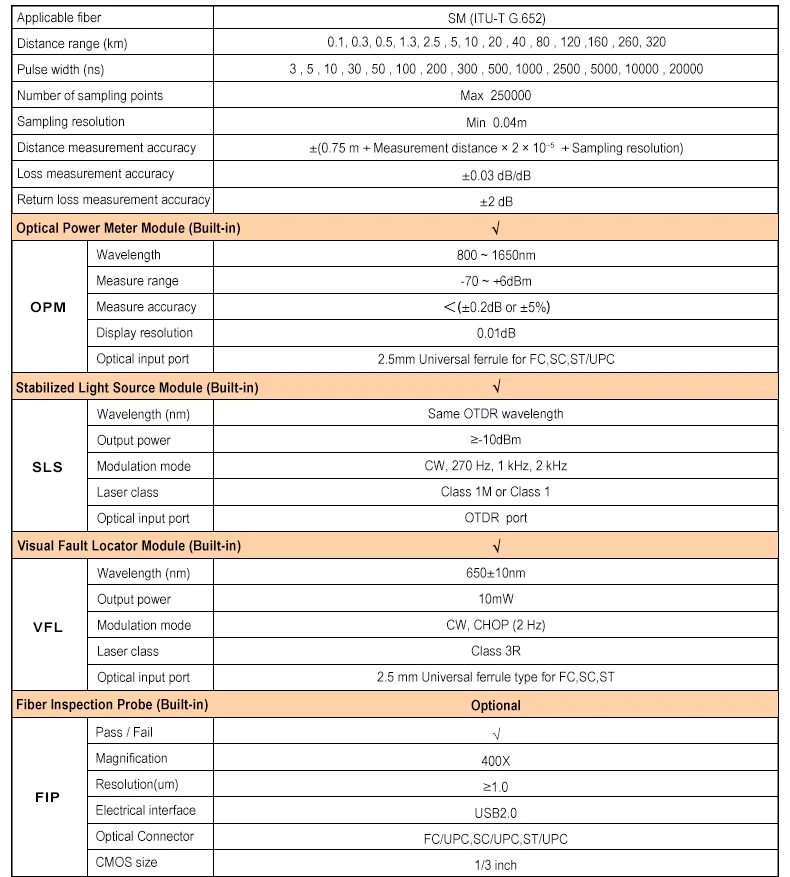

•Maximum sampling points 250,000

• Minimum sampling resolution 0.04m

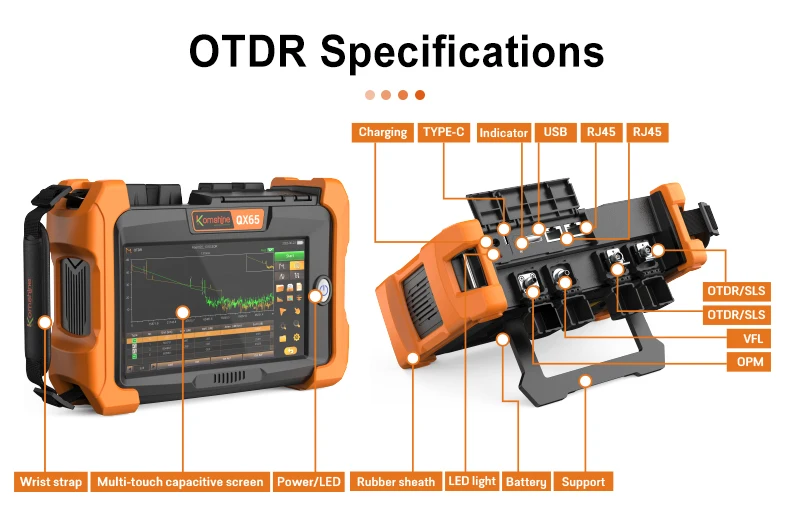

Not just OTDR:

•VNC / GPS / WIFI

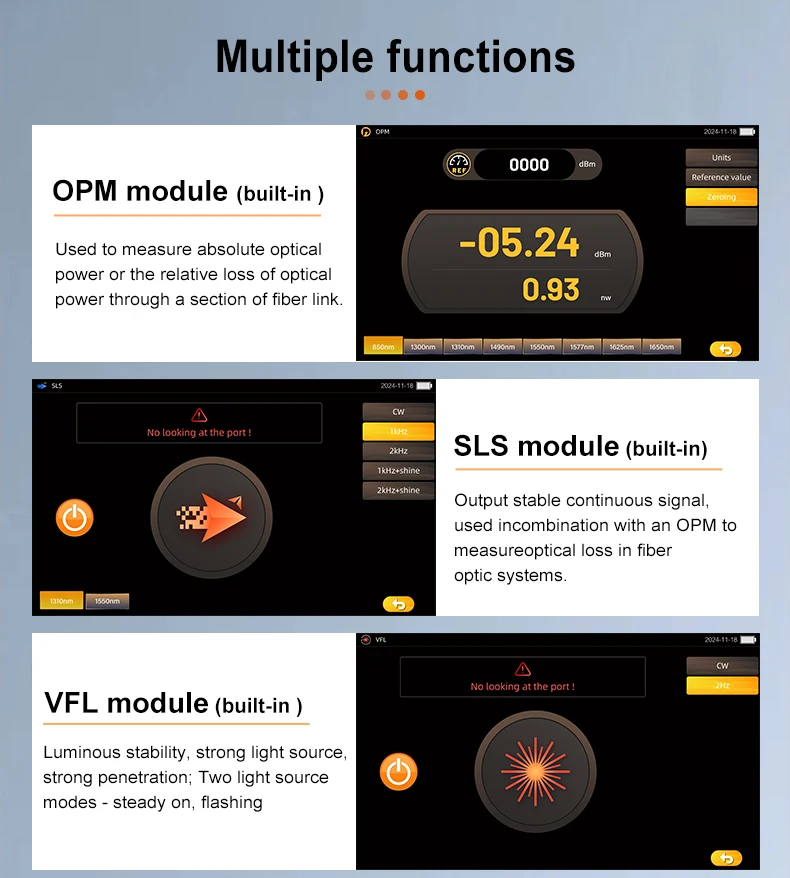

•OPM (Optical power meter module)

•SLS (Stabilized light source module)

•VFL (Visual fault locator module)

•RJ45 (Network Test module)

•FIP (Fiber connector end-face inspection module + analysis function)

  #FIP module can first perform connector end-face detection and then OTDR link testing.

Long-haul network testing

Access network testing

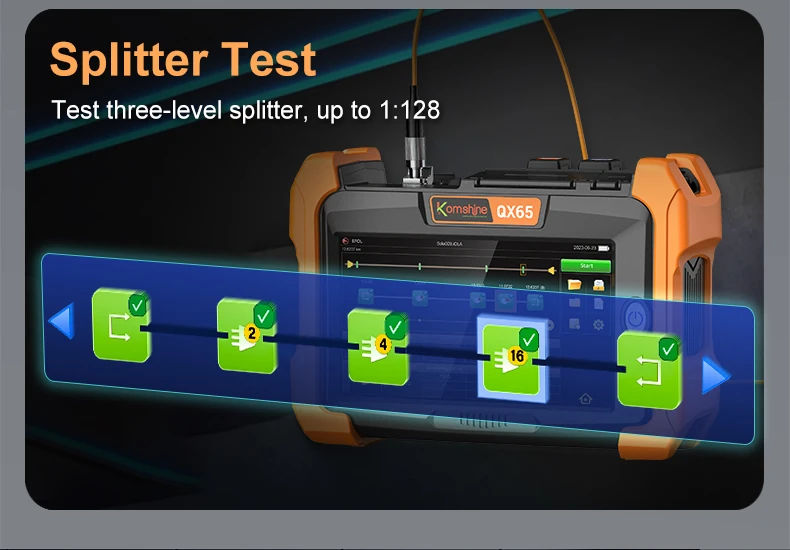

FTTx/PON testing through splitters

All new UI design with innovation

Bult-in OPM,SLS,VFL,RJ45,FIP modules

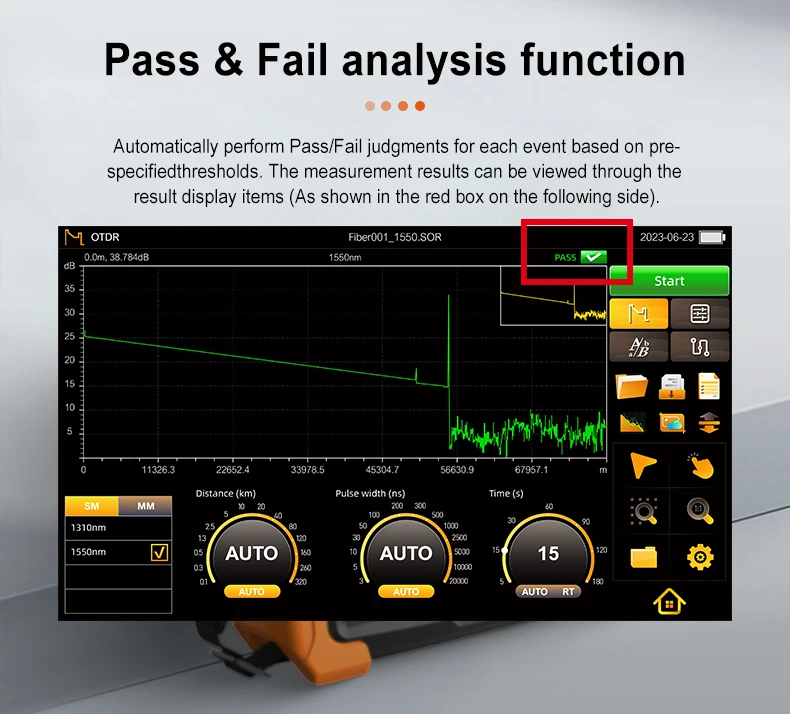

Link Map & Pass/Fail judgment functions

Dual wavelengths testing

other Modules (Optical Power Meter, Stabilized Light source, VFL.Fiber Inspection probe,RJ45 Networks Test)
