GW1000 SmartOTDR 1310/1550nm, 1610nm,1625nm ,1650nm Multifunction OTDR

English

简体中文 Español

Publish time 2020-08-28 15:04

Product information

GW1000 Smart OTDR

Product Descriptions ：

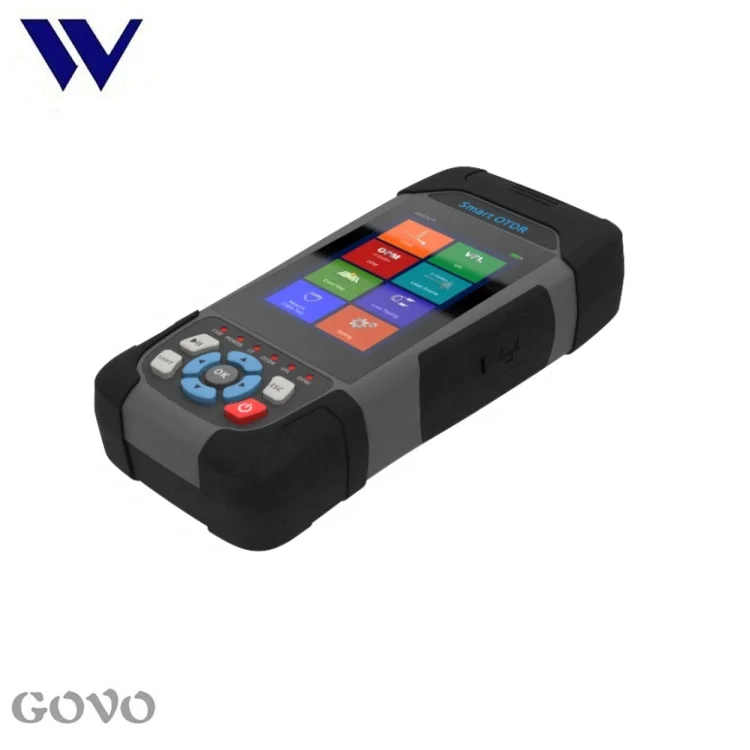

GW1000 SmartOTDR series adopts a 3.5 inch color capacitive touch screen, which enables rapid and hand-free operation .

It combines eight essential fiber tests in one handheld with OTDR, event map,stable light source, optical power meter, red light source, network line sequence test, line finding and lighting. Simple parameter setting and intelligent measurement ensure the operation more simple and efficient .

It is compact and light, easy to carry. It supports wireless charging and the large-capacity battery ensures 10 hours of ultra long time measurement and 20hours of ultra long standby, providing guarantee for field testing .

GW1000 SmartOTDR is mainly used to measure the length, loss, average loss, return loss, connection quality, etc of various optical fibers and cables . It features the function of automatic optical protection to prevent damage to optical modules . With filter module, it can support online testing , and the maximum online optical power is -2dbm .

It can be widely used in FTTx last-mile installation and troubleshooting,short access-network testing and maintenance, and CATV network testing

Main Features :

nType C USB ,and wireless charging	nPalm design , compact and lightweight
nLarge capacity battery, 20 hours	nHidden interface , shock and fall resistant
nMulti function integration: OTDR / LS /VFL/ Network cable test/Flashlight

Specifications:

Model		GW1000-D		GW1000-S1		GW1000-S2			GW1000-S3
Wavelength		1310/ 1550± 20nm		1610±20nm		1625±20nm			1650±20nm
Dynamic range		24/22dB		22dB		22dB			22dB
Fiber type		G .652D
Event dead zone		2 . 5 m
Attenuation zone		8 m
Measuring range		100m/500m/1km/2km/5km/10km/20km/40km/60km/90km
Pulse width		5ns/10ns/20ns/50ns/100ns/200ns/500ns/1us/2us/5us/10us
Accuracy		±( 1m+Sampling interval+0.005% X measuring range)
Linearity		±0 .2dB/dB
Sample points		Maximum sampling points：20000
Sampling resolution		25cm~8m
Loss resolution		0 .001dB
Range resolution		0 .001m
Refractive index		1 .0000~2 .0000
Reflection accuracy		±3d B
File format		Standard sor file format
Safety level		C lass 3B
Temperature		work temperature：- 10℃~50℃ Storage temperature：-40℃~+70℃
Humidity		0~90%(non condensing)
Size / weight		Size ：17cmX12cmX3cm weight：340g
OPM (Optic Power Meter)			LS (Laser Source)				Others
Wavelength	850/ 1300/ 1310/ 1490/ 1550/ 1625/ 1650nm		Wavelength		1310/1550nm		VFL	≥10mW
Measurement Range	A:-70~+10dBm(standard) B:-50~+26dBm (optional)		Laser type		FP - LD		RJ45 wire tracker	Line sequence / Line tracking
							Battery (OTDR)	4000mAh/3 .7V Li-ion
Frequency	270Hz/330Hz/1kHz/2 kHz		Power		-5dBm±2dB		Battery (wire tracker)	9v Alkaline 6LR61
Uncertainty	±5%		Uncertainty		±5%		Adapter	USB(Type C)
Connector	Universal head:FC/SC/ST		Connector		FC/SC/ST		Memory	Inside≥1000 , external:SD
