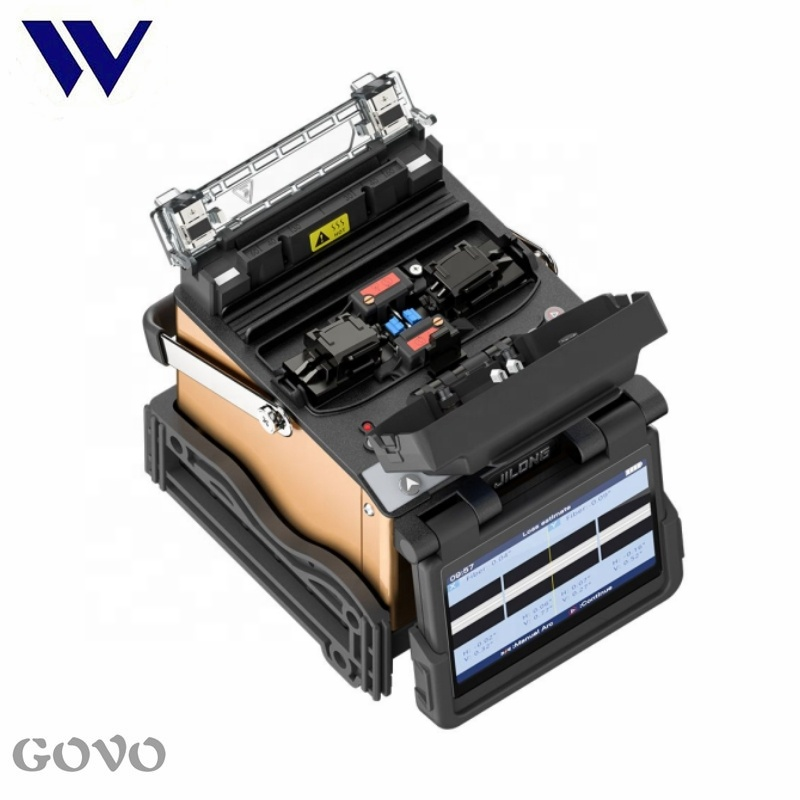

Splice Method

Core Alignment

Applicable Fibers

SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

Compatible Fiber/Cable

0.25~3.0 mm / indoor cable

Fiber Holder

Replaceable (Universal: FH-60, SOC Holder: FH-SOC(optional))

Fiber Diameter

Cladding: 80-150μm,Coating: 100~1000μm

Fiber Cleave Length

8~16 mm

Splice mode

Max 128 modes

Typical Splice Loss

SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB *1

Return Loss

>>60dB

Splicing Time

SM Quick mode : 8 Sec / SM Average: 15 Sec.

Estimated Splice Loss

Available

Heating Time

Quick mode 18 Sec.(SM G652 250μm 40mm Sleeve) adjustable

Protection Sleeve Length

20mm, 30mm, 40mm, 50mm, 60mm

Heat Programs

Max 32 modes

Battery

5200mAh Battery Capacity, Typical 300 Cycles (Splice&Heat) per Charge *2

Electrode Life

5000 arcs, can be extended by using an electrode grinder *3

Auto-start

Splice / Heating

Automatic Fiber Identification

/

Automatic ARC Identification

Automatic arc calibration by air pressure and temperature

Results Storage

The last 10,000 splice records and 2,000 result images

Tension Test

1.96~2.25N

Operating Condition

Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s

Storage Condition

0~95% relative humidity, -20~60°C

Display

4.3” color high resolution (800 x 480) display

Fiber Magnification

X, Y, XY, X/Y : 320X Magnification

Power Supply

AC Input 100-240V, DC Input 9-14V

Terminal

USB2.0

Weight

1.6kg without battery / 1.9kg with battery

Size

139H x 163W x 140D mm (including rubber bumper)
