GOVO GW-08F FTTX Fiber Optic Tool Kit (Bag package)
    Publish time 2020-12-30 14:24

GOVO GW-08F FTTX Fiber Optic Tool Kit (Bag package)

Brand new GOVO GW-08F High Quality FTTx Tools Bag

FTTH Fiber Optic Tool kit






Product Description



    This fiber optic tool kit GW-08F includes a set of tools and accessories commonly used for the construction, deployment and maintenance of fiber optic cables, splices and installations. Packed with soft carrying case, convenient to carry .



Specifications

 GW-08F

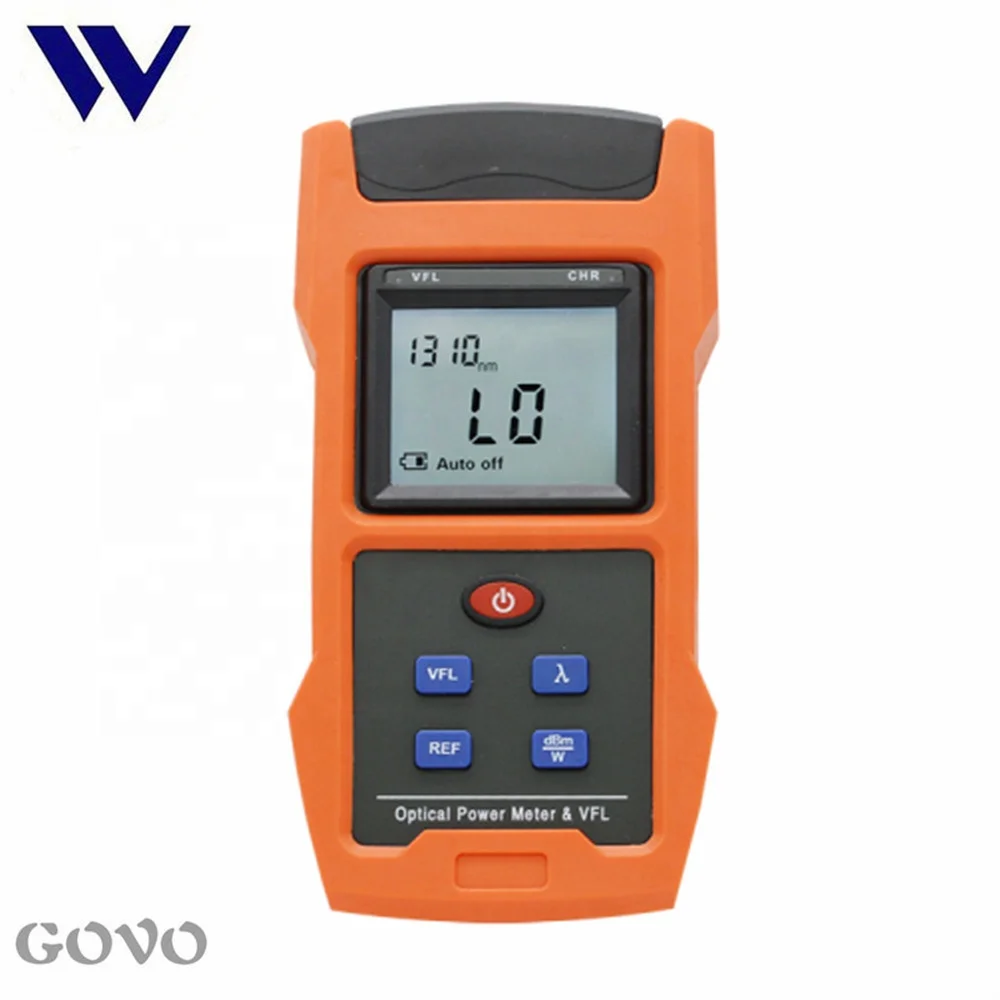

1. Optic Power Meter& VFL

     tool kit power meter



Optic Power Meter

Detector Type:InGaAs

Optical Connector: SC/FC & 2.5mm Universal

Calibrated Wavelengths:850,1300,1310,1490,1550,1625 nm

Measurement Range: -70~+10 dBm

Power Supply: Li-ion battery

VFL

Wavelength: 650nm±20nm

Output power: 10mW
Range:
 8~10km@SM

Connector ST/SC/FC & 2.5mm Universal

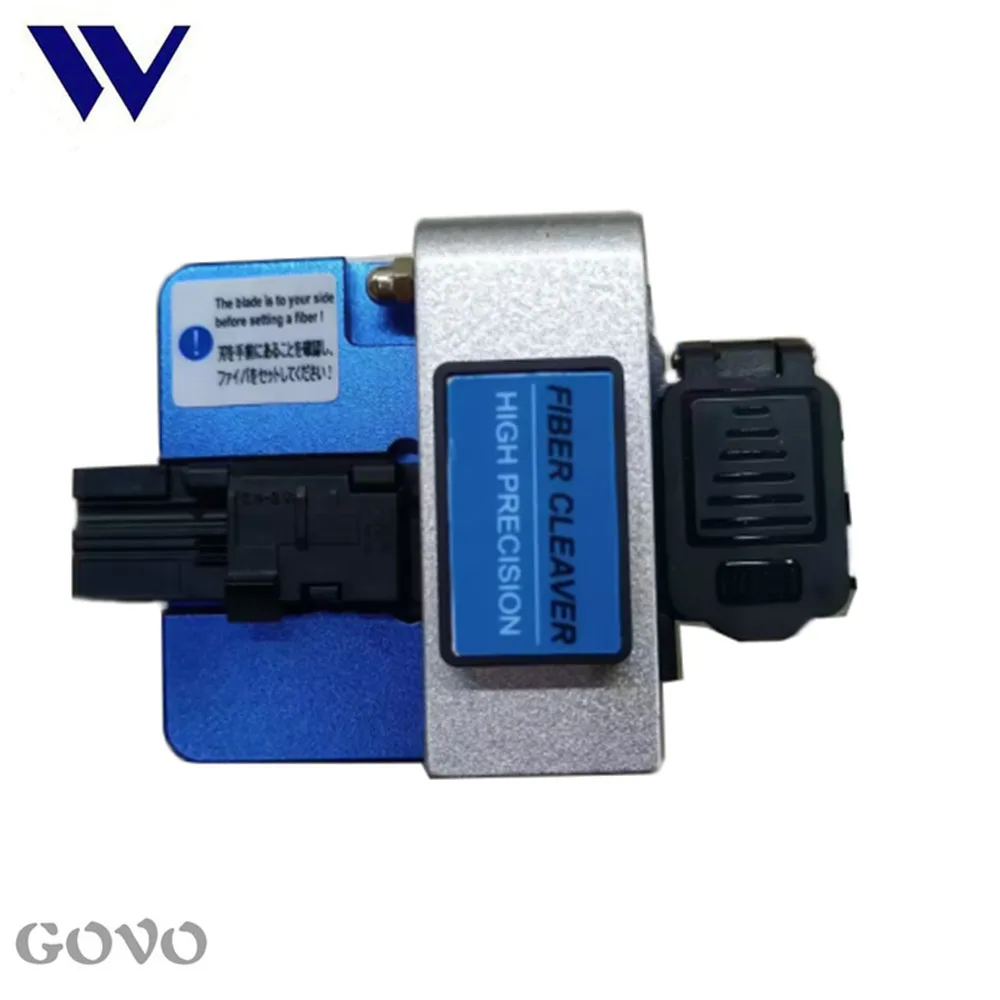

2. Fiber cleaver with scrap collector

 tool kit fiber cleaver.jpg



Ideal for both fusion splicing and preparing pre-polished fiber connectors;

It uses an automatic anvil drop for fewer steps required and better cut consistency;

cutting angle ≤ 0.5°;

24-position blade provides approximately 48,000 cuts;

Standard 125/250um and 125/900um fibers;

Precise mechanical design allows blade replacement in the field;

Packed in a zippered case for protection.

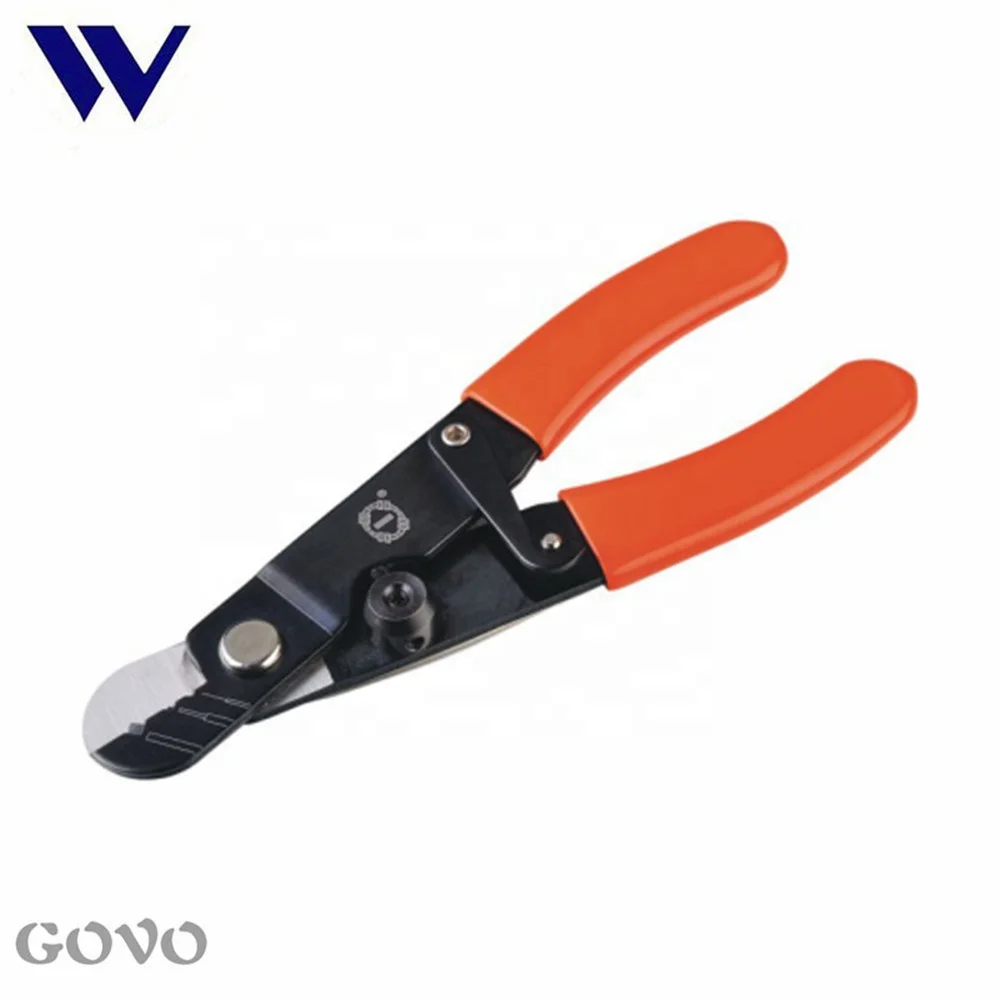

3. Trihole Fiber Optic Stripper

         tool kit  stripper



First hole: Stripping 900 um buffer

Second hole Stripping 2-3 mm jacket

Third hole: Stripping 125 um Acrylate

Weight: 80g

Length: 130mm

Package: by Blister Card

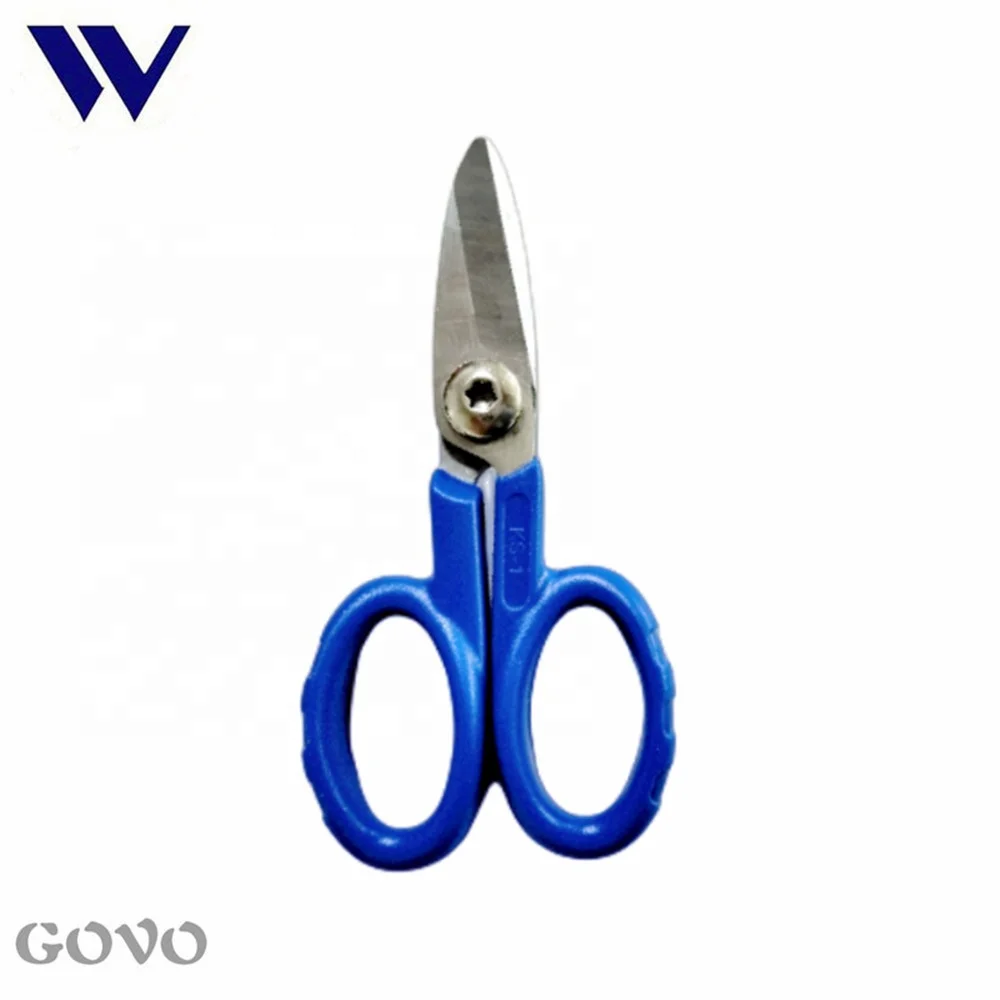

4. Kelvar scisssors

tool kit Kevlar cutter




Light weight scissors with ergonomic handles.

One micro-serrated blade reduces slippage for more positive cutting action.

Blades made from high carbon molybdenum vanadium steel for long life.

Length:140mm

weight: 70g

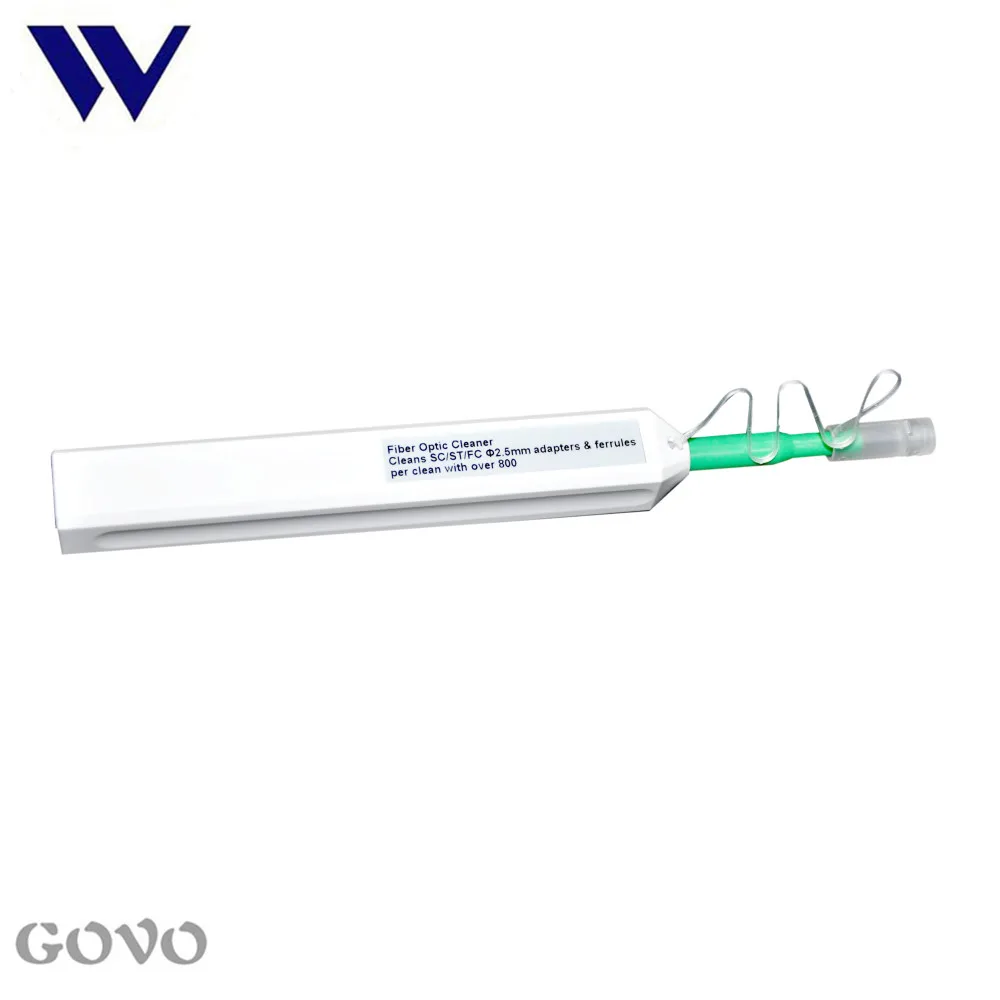

5. One-click Fiber Cleaner

tool kit cleaner



For cleaning SC/ST/FC 2.5mm adapters and ferrules

Cleaning over 800 times

Length:84mm

Weight:21g

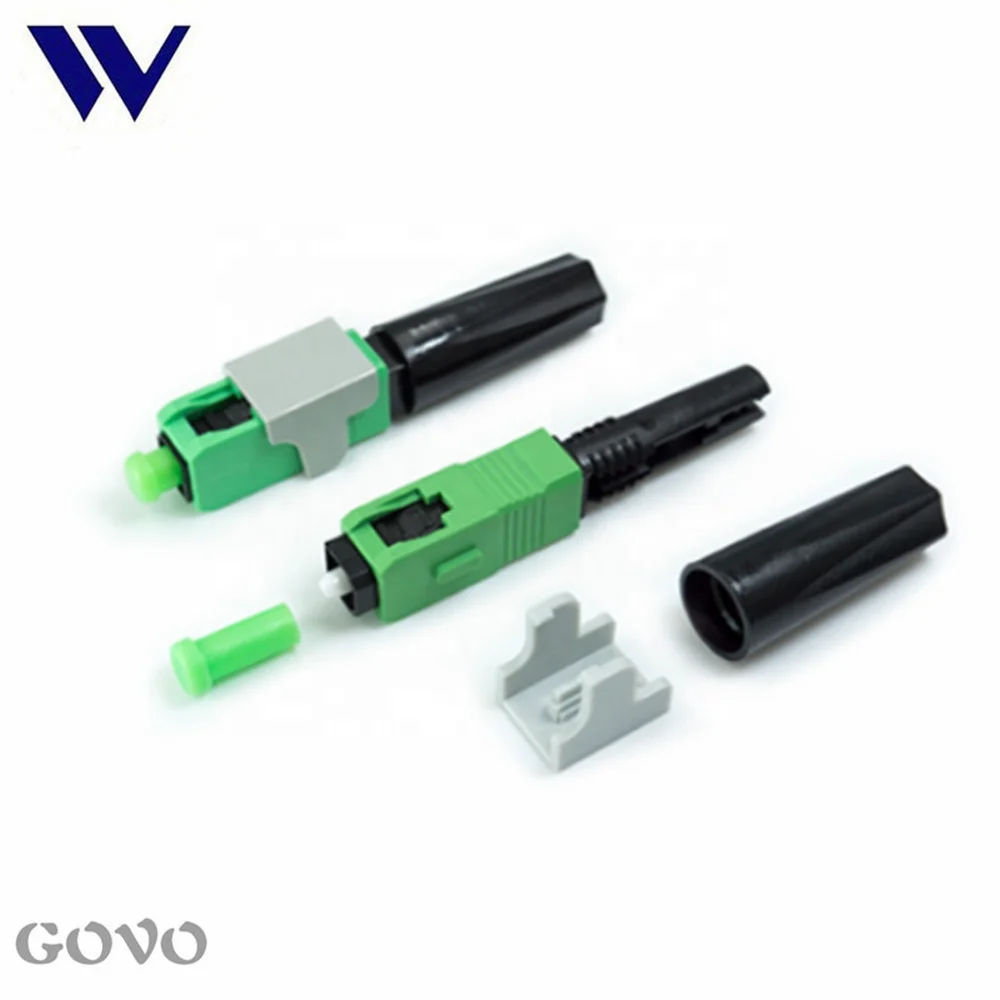

6. Pre-polished Connector (SC/APC)

tool kit fast connector



SC/APC connector

Compatible with 3mm figure 0 and 2mm x 5.2mm Mini

figure 8 cables

Safe and fast installation.

Reuse up to 10 times.

Mechanical splice with 2.5 mm ceramic ferrule.

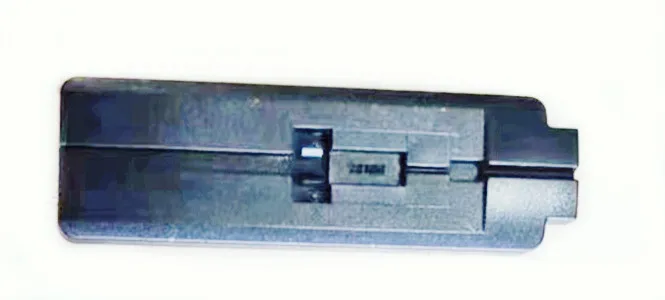

7. Fiber length measuring tool




compatible with item 6: SC/APC connector

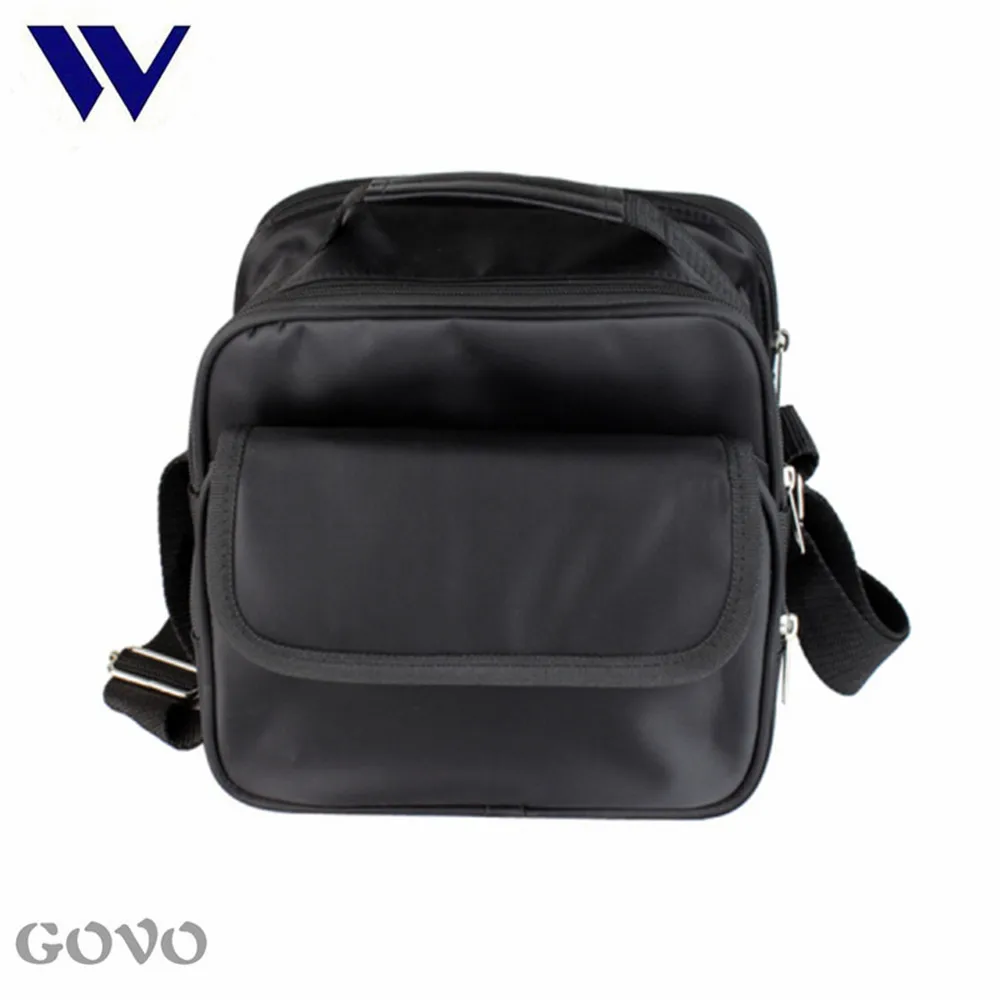

8.  Soft carrying case

tool kit bag





to provide storage and protection for tools

Ease of carrying around with shoulder belt and portable strap.



size:25*19*17cm





Applications

construction, deployment and maintenance of fiber optic cables, splices and installations.

Standard Package





Tools in soft carrying bag

By Carton

Approx .weight: 1.6kg
