Splice Method :

Core Alignment

Applicable Fibers :

SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

Compatible Fiber/Cable :

0.25~3.0 mm / indoor flat cable

Fiber Holder :

Replaceable

Fiber Diameter :

Cladding: 80-150μm，Coating: 100~1000μm

Fiber Cleave Length :

8~16 mm

Splice mode :

Max 128 modes

Typical Splice Loss :

SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB  *1

Return Loss :

>>60dB

Splicing Time :

SM Quick mode : 8 sec / SM Average: 15 Sec.

Estimated Splice Loss :

Available

Heating Time :

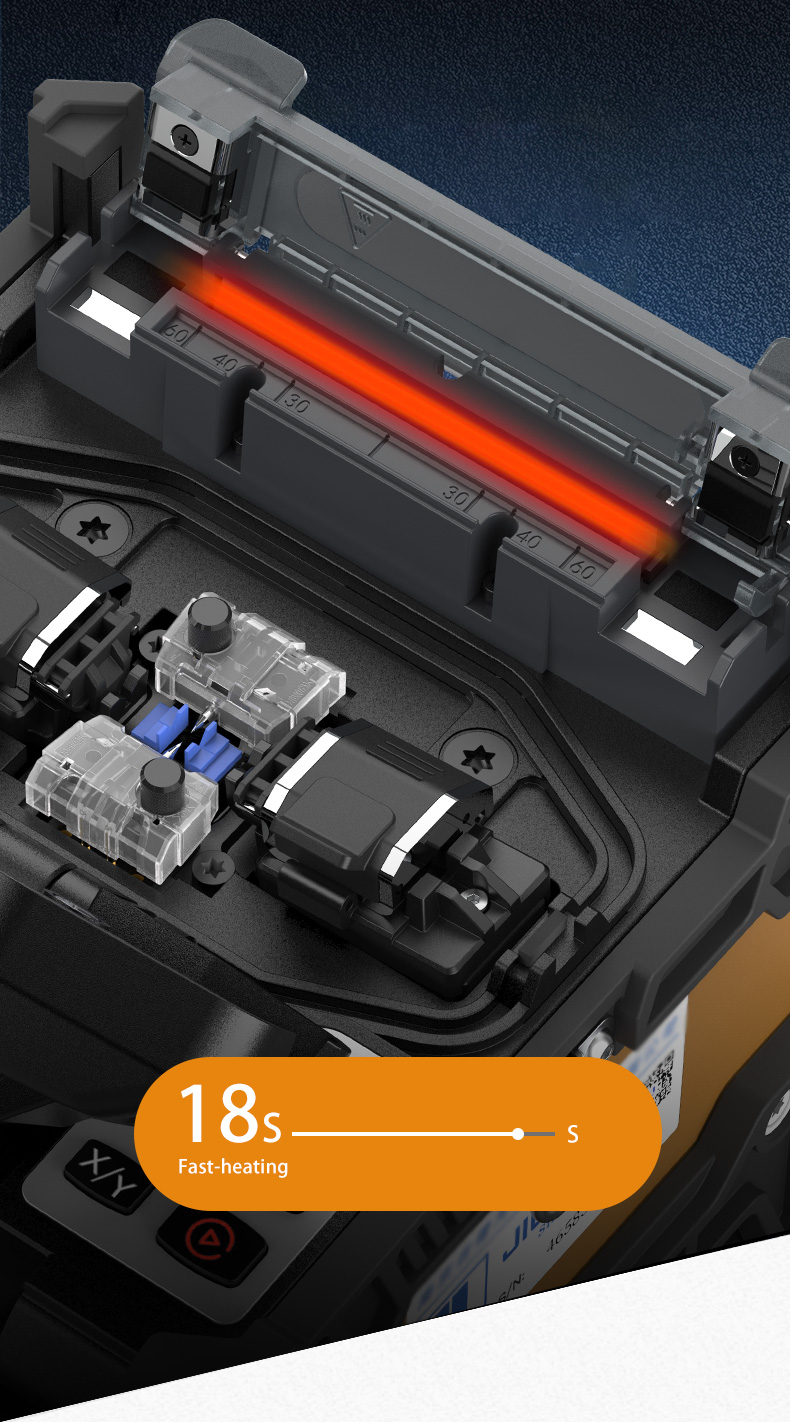

Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable  *2

Protection Sleeve Length :

20mm, 30mm, 40mm, 50mm, 60mm

Heat Programs:

Max 32 modes

Battery :

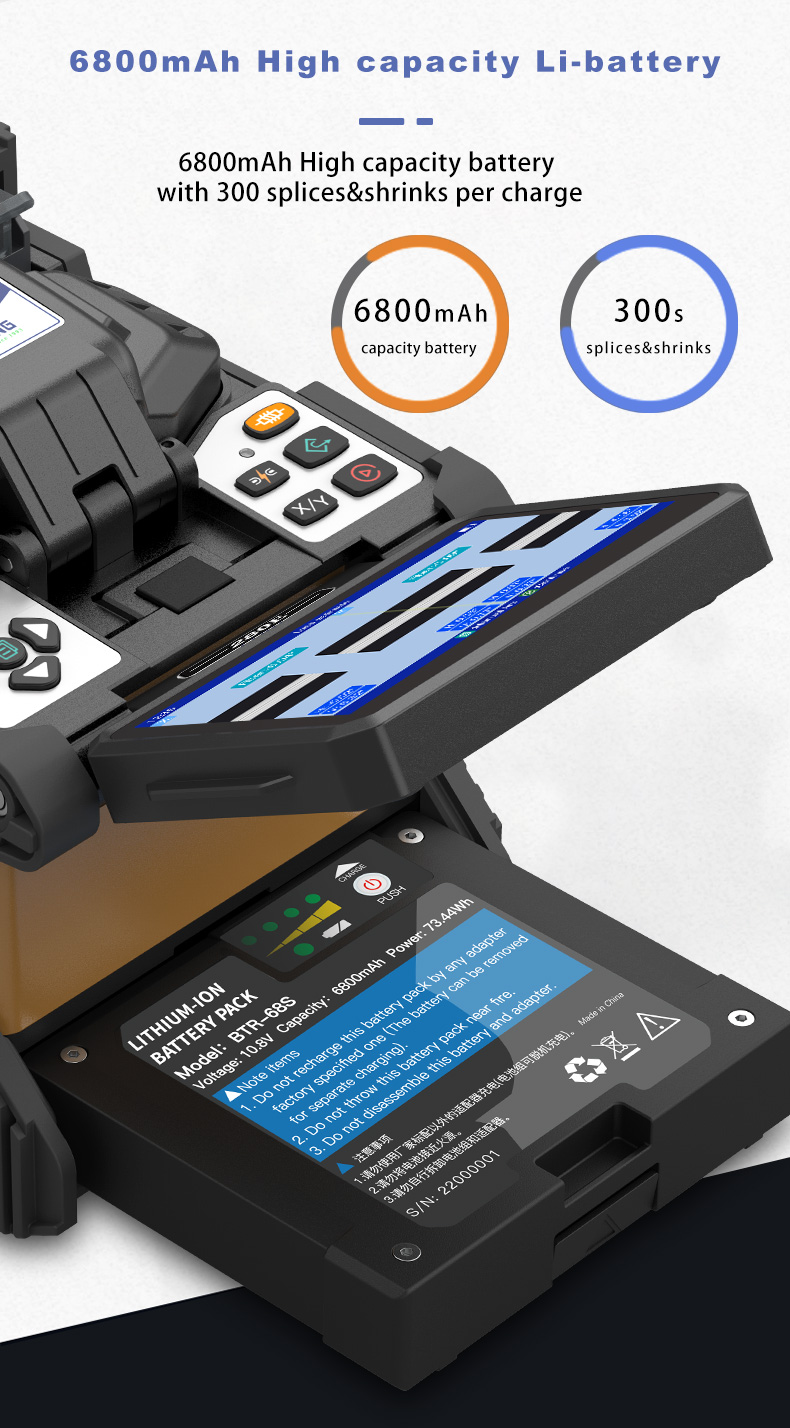

6800mAh Battery Capacity, Typical 300 Cycles (Splice&Heat) per Charge *3

Electrode Life :

5000 arcs ，can be extended by using an electrode grinder  *4

Auto-start :

Splice / Heating

Automatic Fiber Identification :

/

Automatic ARC Identification :

Automatic arc calibration by air pressure and temperature

Results Storage :

The last 10,000 splice records and 2,000 result images

Tension Test :

1.96~2.25N

Operating Condition :

Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s

Storage Condition :

0~95% relative humidity, -20~60°C

Display :

4.3” color high resolution (800 x 480) display

Fiber Magnification :

X, Y, XY, X/Y : 320X Magnification

Power Supply :

AC Input 100-240V, DC Input 9-14V

Terminal :

USB2.0

Weight :

1.60kg without battery / 1.90kg with battery

Size :

143H x136W x155D mm (including rubber bumper)
