Product Descriptions:

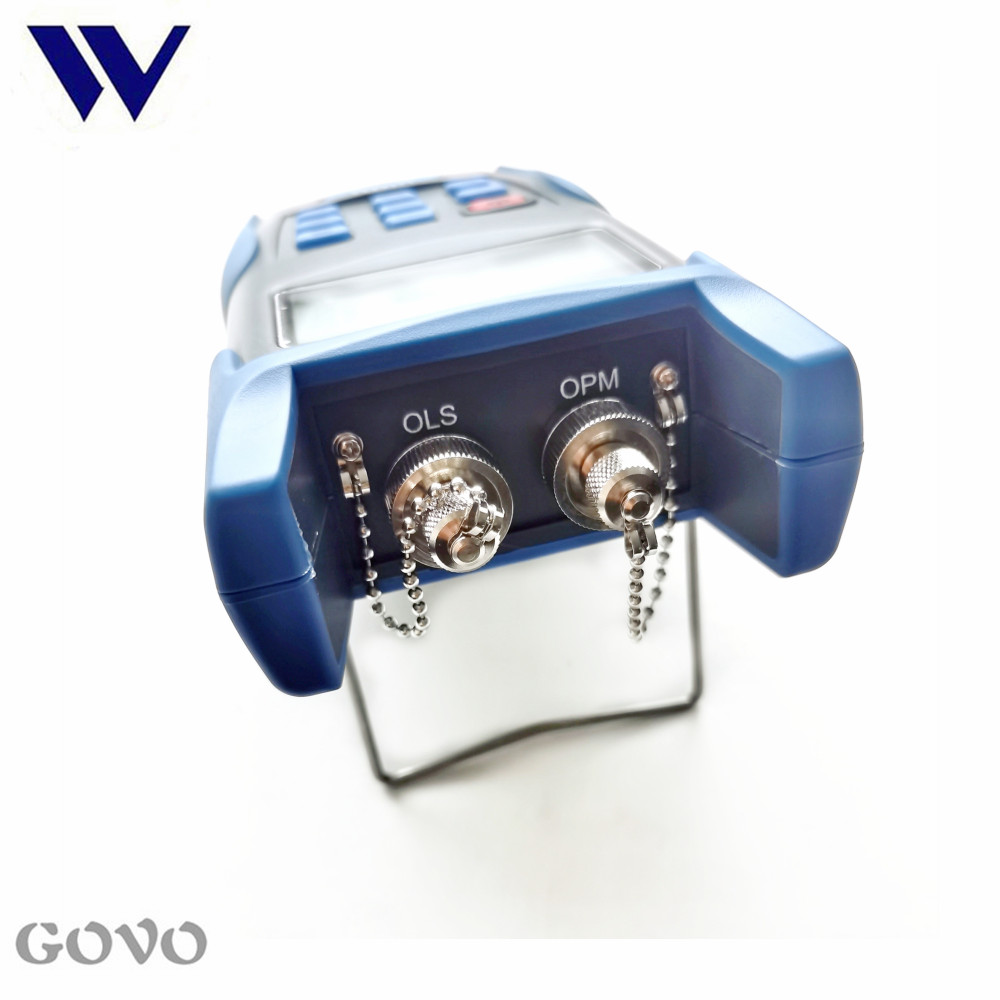

The portable GW3209 series Handheld Optical Multi-meter Integrates the functions of an intelligent optical power meter
module and of a highly stable light source module in one unit. It can also provide data storage and upload functions. It is widely used in installation ,measurement and maintenance of DDN Telecom and CATV networks.
Main Features:
lIntelligent optical power meter module and highly stable light source module in one unit
lUsers could write their own software by the communication protocol provided
lAutomatic wavelength of light source switching
lFrequency identification.
lSimple function mode switching
lHigh stability of the output power
lData storage function, up to 1000 test records
lUSB communication port for saved testing records download
lAlkaline Battery and Mini USB Adapter for power supply
Applications :
structured cable testing
cable manufacturing
network installation and maintenance from core network to FTTH
Specifications:
Model | GW3209A | GW3209B | GW3209C | GW3209D | ||
Function: Optical power meter module | ||||||
Wavelength range | 800~1700nm | |||||
Connector port | Universal 2.5mm FC/SC/ST | |||||
Detector type | InGaAs | |||||
Power test range | -70~+6dBm | -50~+26dBm | -70~+6dBm | -50~+26dBm | ||
Uncertainty | ≤±0.25 | |||||
Resolution(dB) | 0.01 | |||||
Linearity (dB) | ≤±0.1 | |||||
Frequency ID Range(Hz) | <10K | |||||
Function: Optical Light Source Module | ||||||
Wavelength(nm) | 1310/1550 | 1310/1490/1550 | ||||
(other wavelengths can be optional) | ||||||
Typical Ouput Power (dBm) | -5 | |||||
Output Stability (dB,30min,20℃) | ≤0.1 | |||||
Modulation Frequencies (Hz) | CW,270,1K,2K | |||||
Connector port | Universal 2.5mm FC/SC/ST | |||||
General Specifications | ||||||
Power Supply | 3 pcs 1.5V Alkaline Batteries/Mini USB 5V Adapter | |||||
Battery Operating Time(h) | ≥50 (Both Power Meter and Light Source are working) ≥200(Only Power Meter is working) | |||||
Battery duration | ≥120h(OPM) | |||||
Automatic shutdown time | 10min | |||||
Communication Port | Mini USB | |||||
Working temperature(℃) | -10~+60 | |||||
Storage temperature(℃) | -25~+70 | |||||
Relative humidity | 0~95% No condensation | |||||
Dimension | 23.5*16*8cm | |||||
Weight | 0.70kg |
Ordering information:
Model | Optic Power Meter | Light Source | Connector Port |
GW3209A | -70~+6dBm | 1310/1550nm | Default: UPC Optional: APC |
GW3209B | -50~+26dBm | 1310/1550nm | |
GW3209C | -70~+6dBm | 1310/1490/1550nm | |
GW3209D | -50~+26dBm | 1310/1490/1550nm |
Standard Package :
lIntelligent Multimeter,
lMini USB cable,
l3pcs 1.5V Alkaline Batteries
lUser Manual,
lSoft carrying case.
