GW3500 Optic Power Meter with VFL 1mW/10mW/20mW/30mW OPM+VFL
    Publish time 2020-09-21 10:58

GW3500 Optic Power Meter with VFL 1mW/10mW/20mW/30mW OPM+VFL


 GOVO GW3500 Optical Power Meter +VFL

OPM: -70~+10dBm /-50~+26dBm

                                                                    VFL: 1mW/10mW/20mW/30mW

Features:

  •  Self Calibration

  • Set the Auto Off

  • Wavelength Memory function after turn off the tester

  • High Accuracy, high ,High sensitivity, high linearity

  • Stable VFL Output

  • USB Charge port

  • FC,SC Connector

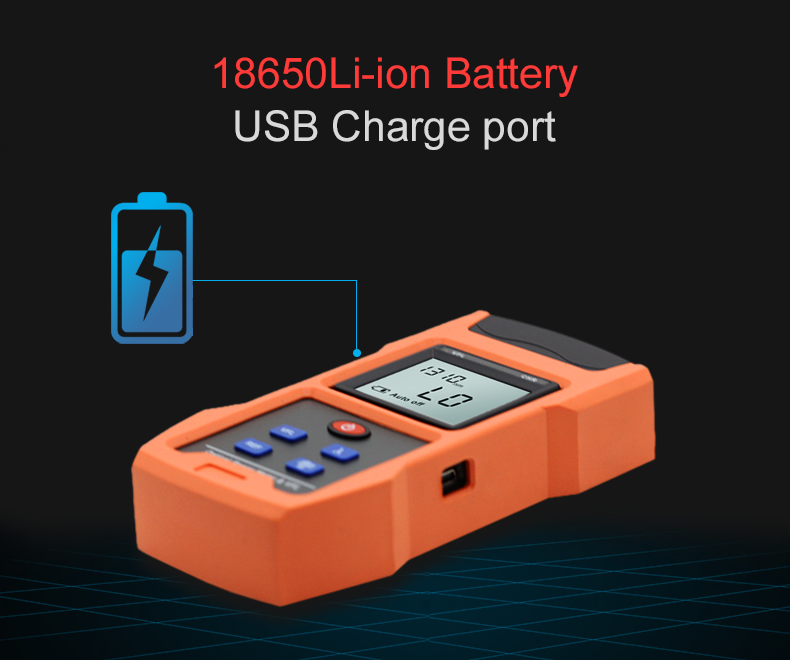

  • Powered by 18650 Li-ion Battery

  • Lower power consumption design, long standby time

  • Rubber Out shell, better protection for field work

Applications:

  Telecommunications maintenance

 CATV Maintenance

 Test Lab of Fiber Optic

 Optical fiber sensors

Specifications:

Optical Power Meter

Detector Type

InGaAs


Optical Connector

SC/FC & 2.5mm Universal


Calibrated Wavelengths

850,1300,1310,1490,1550,1625 nm


Measurement Range

-70~+10 dBm/-50+26dBm


Accuracy

±0.2 dB


Power Measurement Linearity

±0.1 dB


Display Resolution

±0.01 dB


Power Display Units

dBm, mW, uW

Visual Fault Locator

Output power

1mw/10MW/20mw/30mw


Range

12-km@SM


Connector

ST/SC/FC & 2.5mm Universal


Laser safety rating

Class 2


Wavelength

650nm±20nm


Output modes

Continuous (CW),2 Hz pulsed


Reverse battery protection

Yes

General

Power Supply

18650 Li-ion battery


Auto Off

10 minutes


Working time

>200hours(only OPM Work)

≥50hours(10mW VFL & OPM Work )


Working Temperature

-10~+50℃


Weight

250g


Dimensions

160*75*10mm



Standard Package:
