OFW mini Optical Fiber Identifier with VFL LED light Optical Fiber Detector (0.25/0.9/2.0/3.0mm) Live Fiber Identifier
Features:
Available for 0.25/0.9/2/3mm fiber, no need to change clamp/fiber holder
Equipped with shade cap convenient to use in strong light environment
Compact design, self-lock trigger, free your hands
0.96 inch OLED screen, richer display content
Detect frequency 270/1k/2kHz
700-1700nm wavelength range
Bulit-in Lithium battery, Type-C port
with LED light and 10 mW VFL

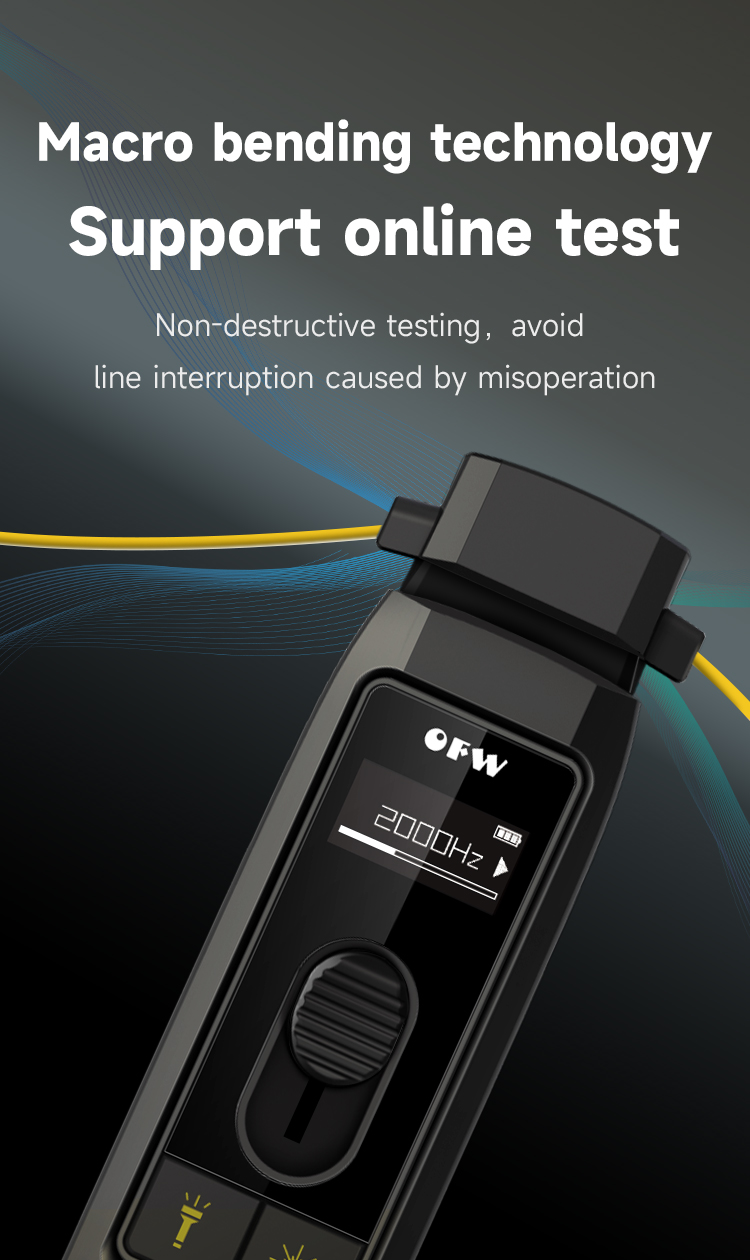

Macro bending technology Non-destructive testing
Applications:
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Specifications:
| Model | FWD-01 |
| Wavelength Recognition Range | 700nm to 1700nm(SM) |
| Signal Recognition Type | 270Hz,1kHz,2kHz |
| Adapted Fiber Type | Universal Holder for φ0.25(Bare Fiber),φ0.9,φ2.0,φ3.0mm Cable |
| Sensitivity | +10~-40dBm(@ wavelength 1550nm) |
| VFL Connector | 2.5mm universal connector |
| VFL Frequency | 2±0.5Hz |
| VFL Output Power | 10mW |
| Power Type/Battery | Built-in lithium battery |
| Battery detection | Low battery automatic shutdown |
| Charging Interface | TYPE-C (5V 500mA) |
| Energy Saving Mode | yes |
| LED Light | yes |
| Beep | yes |
| Operating Temperature Range | -10℃ to +50℃ |
| Storage Temperature Range | -25℃ to +70℃ |
| Relative Humidity | <95% no condensation |
| Dimensions | 152mm*41mm*32mm |
| Weight | 80g |

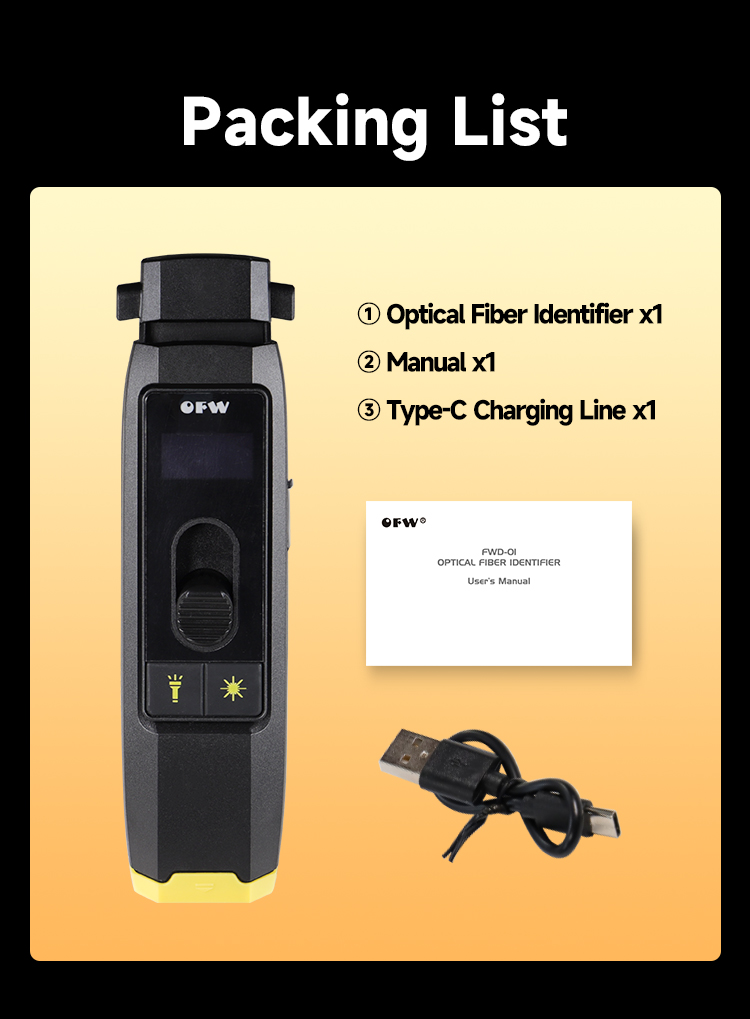

Standard Package:
