4.3inch Touchscreen Mini-OTDR OTDR-4000D FTTH OTDR tester+OPM+LS+VFL+RJ45 testing
    Publish time 2020-08-28 15:04

4.3inch Touchscreen Mini-OTDR OTDR-4000D FTTH OTDR tester+OPM+LS+VFL+RJ45 testing

4.3 inch touchscreen OTDR-4000D  FTTH OTDR Tester Mini OTDR Tester


OTDR-4000.1



Product Description

    Mini-OTDR Pro series OTDR adopts 4.3-inch capacitive touch screen. It integrates 12 functions,such as auto OTDR,expert OTDR, event map, OPM, RJ45 cable tracker, and 'computer level' file management to meet various test requirements in different occasions. OTDR has a maximum dynamic range of 26dB, 8G memory, and can store more than 200,000 curves; it is equipped with 4000mAh high-density polymer lithium battery,intelligent power saving management,measuring time of more than 8 hours,and supporting power supply and charging of the power bank. OTDR-4000 series are used to measure the length, loss, connection quality and other parameters of optical fiber. It is widely used in FTTX, secondary backbone network engineering construction, maintenance and emergency repair test,and production measurement of optical fiber and cable.

MINI-OTDR 1MINI-OTDR 4











MINI-OTDR 2MINI-OTDR 3MINI-OTDR 6



Main Features



1. Multifunctional  : Auto OTDR, expert OTDR, event map, OPM, LS, VFL,RJ45 cable tracker, RJ45 cable sequence,RJ45 cable length, end face detection(optional), flash light, optical loss test.

2. OPM supports CW/270/330/1k/2kHz frequency identification

3. LS supports CW/modulation mode output with adjustable output power

4. Expert OTDR:Professional measurement, curve/list/map are displayed simultaneously

5. Auto OTDR:no complex settings, one key test
6.VFL and LS can run in the background, multi task can be operated simultaneously

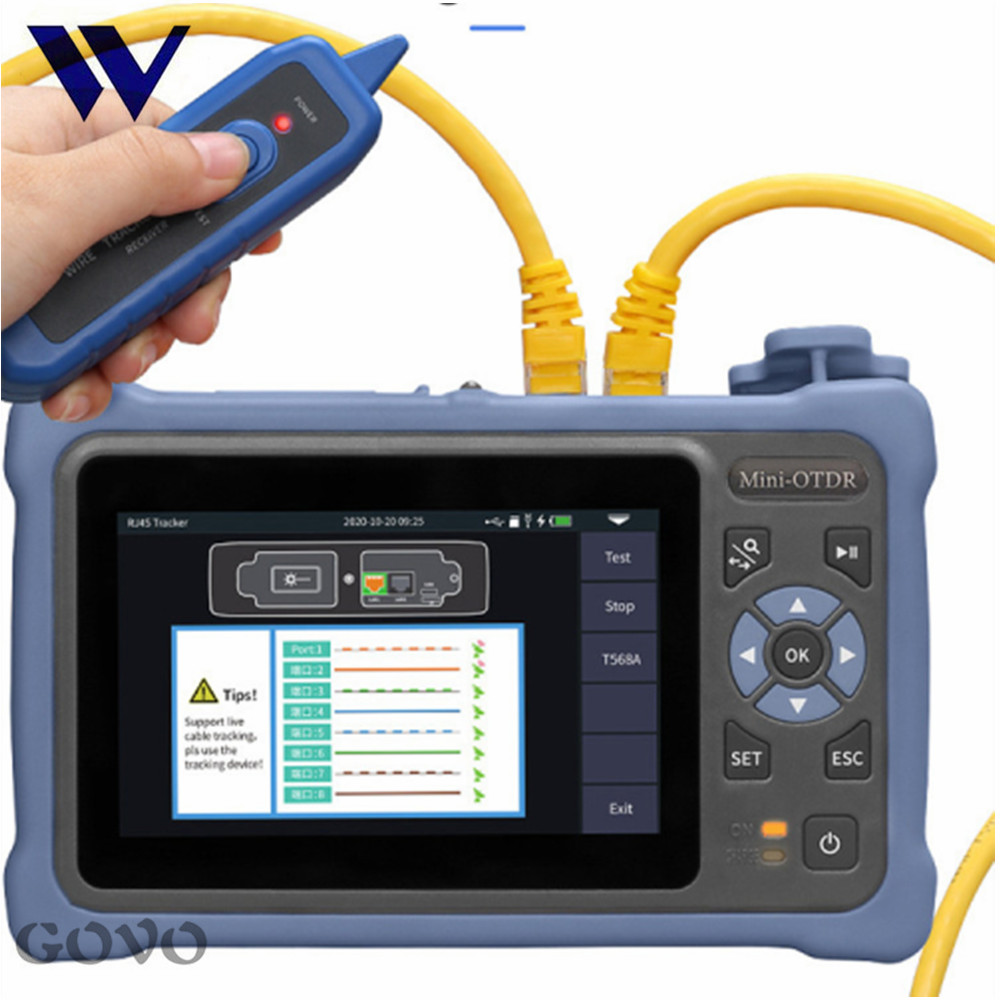

7.RJ45 cable tracker of digital radar,stronger anti-jamming ability
8.RJ45 cable sequence/cable length test, up to 300m
9.One click screen capture, easy to save the interface

MINI-OTDR 7

Application



Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements

Specification
   OTDR-4000 SPEC.1OTDR-4000 SPEC.2





Standard Package

 Mini-OTDR standard package includes:



Main body(with built-in battery), AC Adapter, Data Line,

8G TF card(built-in OTDR, Analysis software/User' s Manual),

User' s Manual, SC/UPC adapter, Qualification Certificate/ Service ,

Guarantee Card, Calibration Certificate, Clean Cotton Slices, Instrument softbag

 OTDR-4000 PACKAGE
