Fiber Optic OTDR Launch Box 500m 1km 2km with connectors

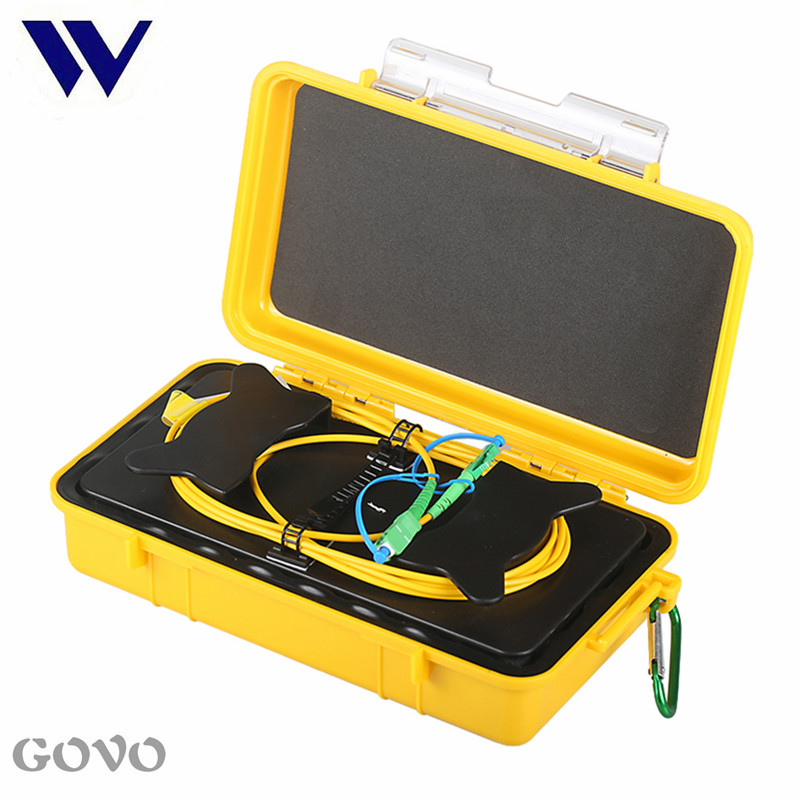

Fiber Optic OTDR Launch Box

Product Description

OTDR Launch Cables are designed to be used in conjunction with an OTDR to measure complete link loss of a fiber. They are also known as pulse suppressor cables, launch cords, launch leads, receive cables or fiber rings. An OTDR launch cable, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection.  A fiber ring serves as both a launch cable and a receive cable.


Features

  • Water and dust proof allowing the unit to be taken into almost any environment;

  • The case can house up to 2000meters of fiber;

  • Small volume, light weight(1kg) easy to carry;

  • Excellent sealing performance.

Applications

  • For use as OTDR launch cable

  • For use as OTDR receive cable

  • Measure insertion loss and reflectance of near- and far-end connections of a fiber optic link using an OTDR

  • Use to test link loss with an OTDR

Specification

Attenuation

@1310nm

≤0.35dB/km

@1550nm

≤0.21dB/km

Attenuation vs wavelength

@1310nm

1285~1330nm

≤0.03dB/km

@1550nm

1525~1575nm

≤0.02dB/km

Various fiber options; single-mode, multimode, OM3 etc.

Various connector options; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC etc.

Delivery length:500M,1KM, 2KM, customized


Ordering information


Part No.

Description

GW-Fiber-BOX-SM05

 SM  G652D, 500M,

 Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC  optional

GW-Fiber-BOX-SM10

 SM  G652D, 1KM,

Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC  optional

GW-Fiber-BOX-SM20

SM  G652D, 2KM,

Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional

GW-Fiber-BOX-MM05

 MM  (62.5/125um or 50/125um), 500M,

 Connector; FC/PC, SC/PC, ST/PC, LC/PC  optional

GW-Fiber-BOX-MM10

 MM  (62.5/125um or 50/125um), 1KM,

 Connector; FC/PC, SC/PC, ST/PC, LC/PC  optional

GW-Fiber-BOX-MM20

 MM  (62.5/125um or 50/125um), 2KM,

 Connector; FC/PC, SC/PC, ST/PC, LC/PC  optional

GW-Fiber-BOX-SM705

 SM  G657A, 500M,

 Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional

GW-Fiber-BOX-SM710

 SM  G657A, 1KM,

Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC  optional

GW-Fiber-BOX-SM720

 SM  G657A, 2KM,

 Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC  optional

GW-Fiber-BOX-OM305

 OM3, 500M,

 Connector; FC/PC, SC/PC, ST/PC, LC/PC  optional

GW-Fiber-BOX-OM310

 OM3, 1KM,

 Connector; FC/PC, SC/PC, ST/PC, LC/PC  optional

GW-Fiber-BOX-OM320

 OM3, 2KM,

 Connector; FC/PC, SC/PC, ST/PC, LC/PC  optional
