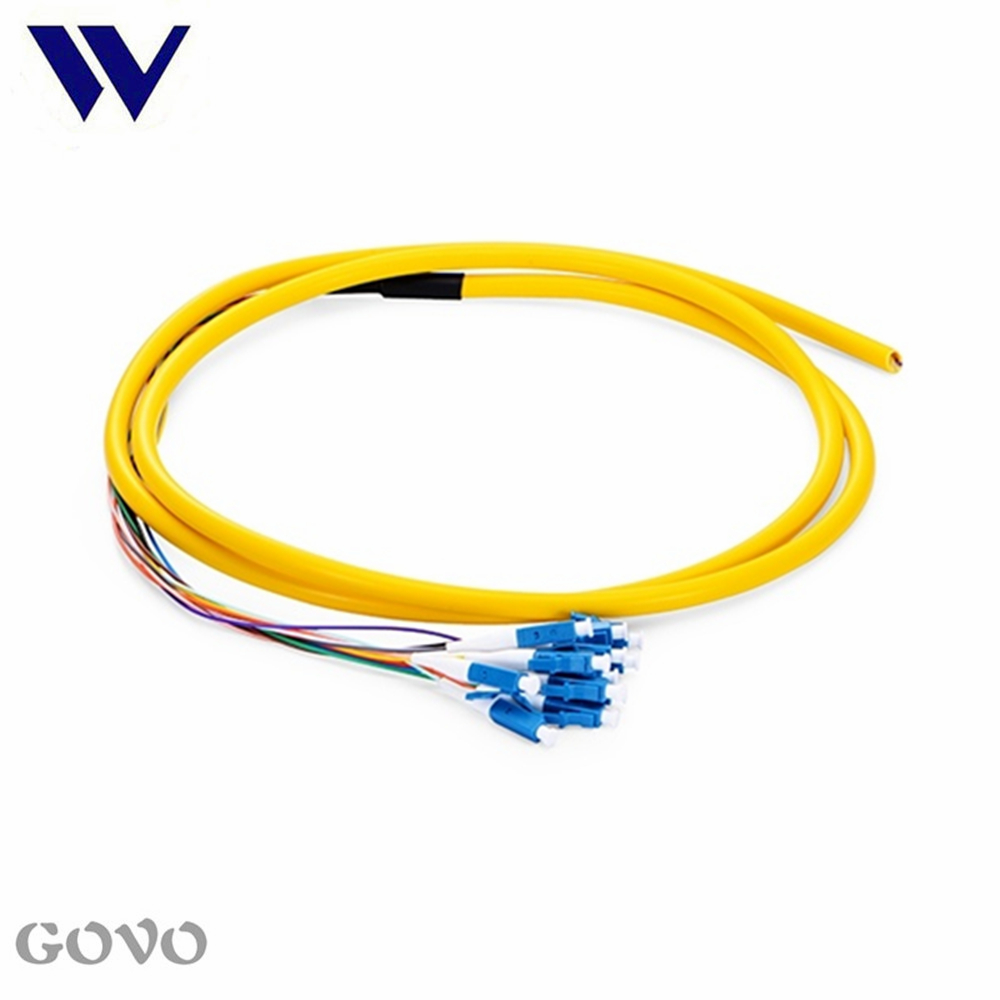

12 cores SM/MM Fiber Optic Pigtail
Product Description
Ribbon fan-out optical fiber pigtail can separate and protect fibers in a multi-core optical fiber ribbon (such as 12 cores) through a special fan-out splitter, so as to connect each fiber through a connector to make the fibers connection on ODF.
Feature
4, 6, 8, 12, 24, 36, 72, 96 fibers Bunch Fan-out Splitter Available
High fiber tensile strength with double shield
Variety of connector types applicable
Easy fiber identification by coloring
Application
Gigabit Ethernet; Active device termination
Telecommunication networks; Video
Multimedia; Premise installations
Local area networks
FTTH FTTX applications; CATV
Specification
Pigtail Connector |
PC (SM) |
UPC (SM) |
APC (SM) |
MM |
Return Loss (dB) |
≥45 |
≥50 |
≥60 |
≥35 |
Insertion Loss (dB) |
≤0.2 (max≤0.3) |
|||
Repeatability (dB) |
≤0.1 |
|||
Durability(1/Matings) |
≥500 |
|||
Operation Temperature (°C) |
-25~+70 |
|||
Tensile Strength (N) |
≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 |
|||
Fiber |
9/125um, 50/125um,62.5/125um etc. |
|||
diameter |
0.9mm 2.0mm, 3.0mm etc. |
|||
Cable material |
PVC, LSZH |
|||
Cores |
Simplex, Duplex, 4cores, 6cores, 8cores, 12cores etc. |
