Dimension

470mm*180mm*125mm

Capacity of FOSC

Bunchy:12-144 (cores)

Cable ports

6 pieces（3 pieces one side ）

Diameter of Cable

Φ8mm～Φ20 mm

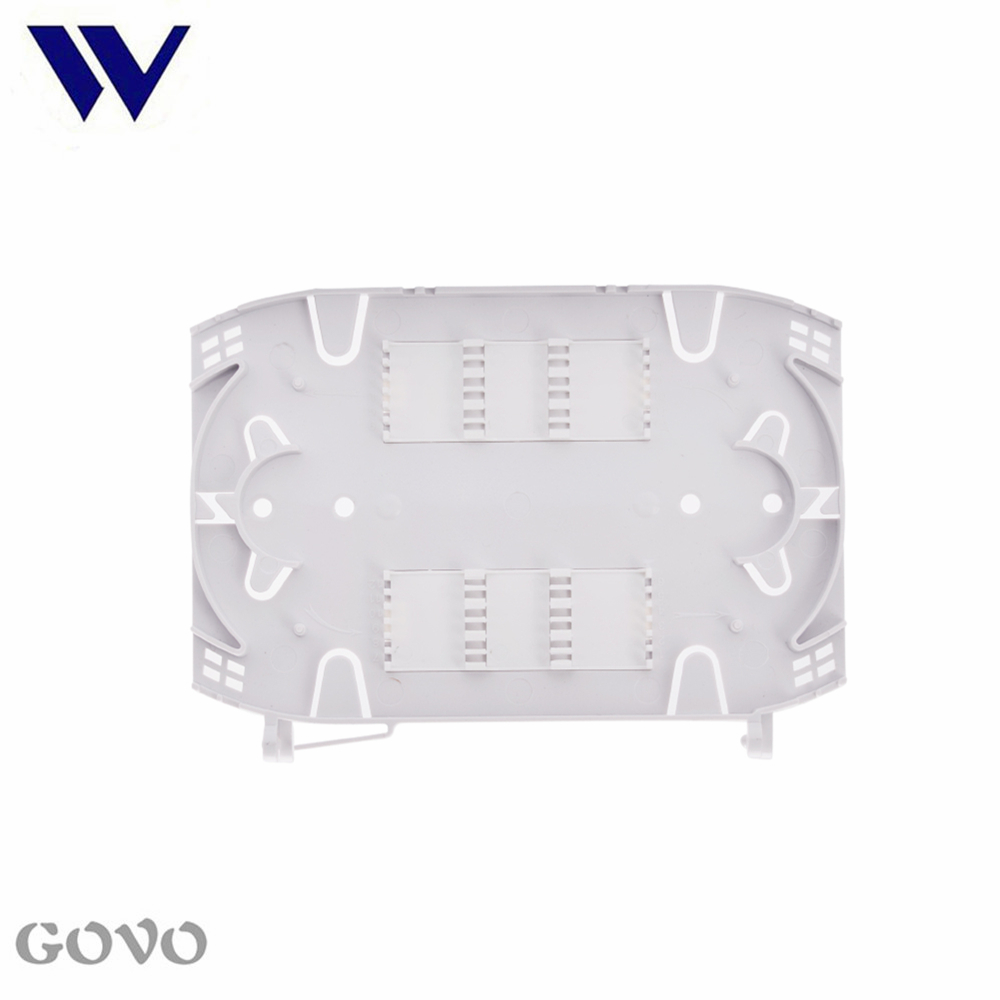

Capacity of tray

12 or 24 cores

Protection level

IP68

Outer carton size

710*490*395mm

Inner carton size

475*185*135mm

Number of Packing

10 pcs/ctn

Weight

2650~2975g/pcs

No.

Name of accessories

Quantity

Usage

Remarks

1

Heat shrinkable protective sleeve

Protecting fiber splices

Configuration as per capacity

2

Nylon tie

Fixing fiber with protective coat

Configuration as per capacity

3

Insulation tape

1 roll

Enlarging diameter of fiber cable for easy fixing

4

Seal tape

1 roll

Enlarging diameter of fiber cable which fits in with seal fitting

Configuration as per specification

5

Hanging hook

1 set

For aerial use

6

Earthing wire

1 piece

Putting through between earthing devices

7

Abrasive cloth

1 piece

Scratching fiber cable

8

Labeling paper

1 piece

Labeling fiber

9

Special wrench

3 pieces

Fixing bolts, tightening nut of reinforced core

10

Measuring paper

1 piece

To measure circle, of which its diameter is enlarged with seal tape

11

Buffer tube

to be decided by customers

Hitched to fibers and fixed with FOST, managing buffer

Configuration as per requirement

12

Desiccant

1 bag

Put into FOSC before sealing for desiccating air.
